Our CNG trailers can be used as a mobile unit.

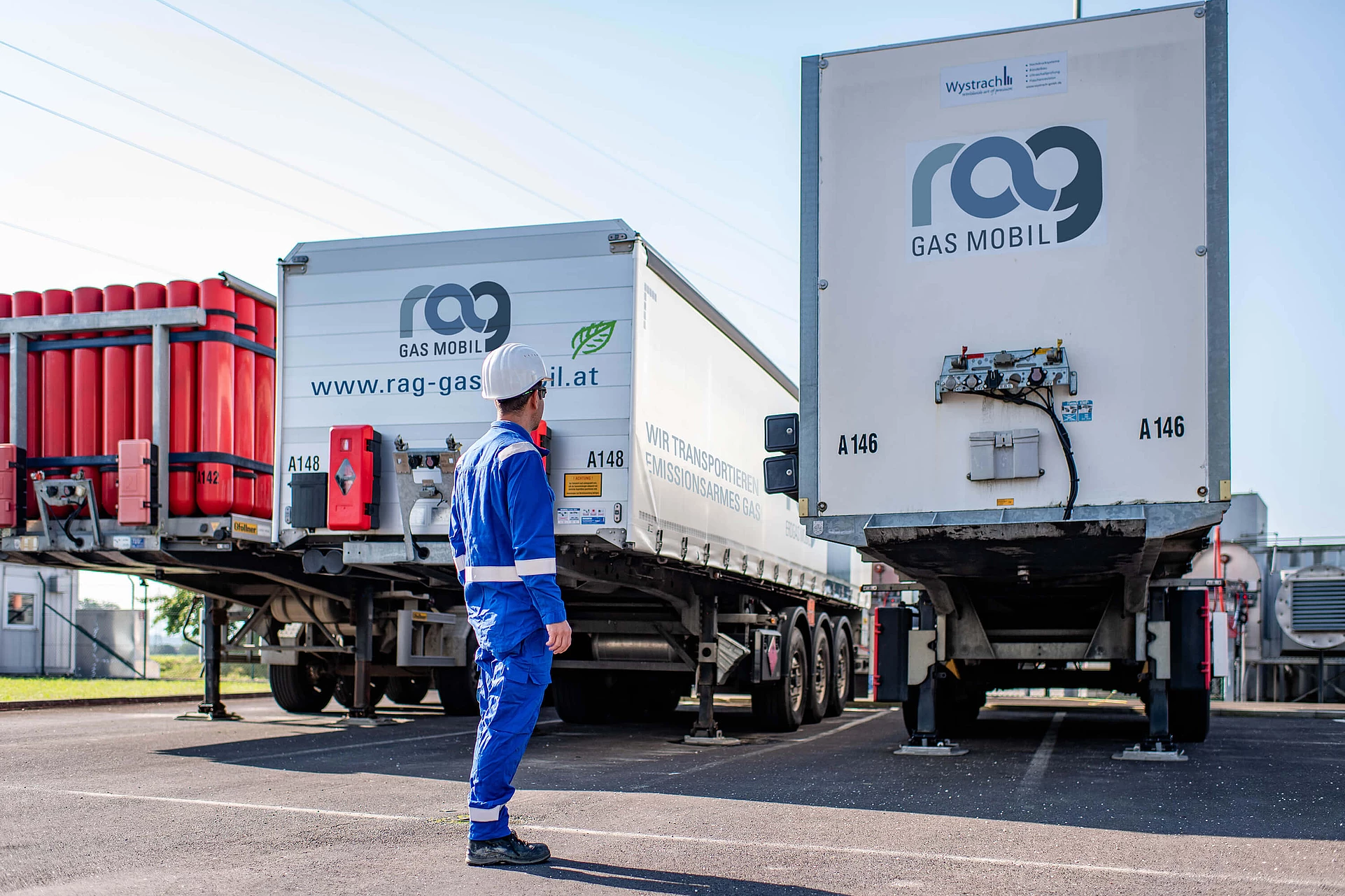

A CNG trailer consists of a large number of pressure bottles arranged on a frame and piped to each other. Several sections (usually 6 sections) are formed and installed with separate fittings to shut off each section. The entire unit is designed as a trailer and can therefore be used as a mobile unit. The trailers are filled with natural gas (~ 99% methane) at the RAG filling station up to a maximum pressure of 200 bar.
©
Technical specifications of the CNG trailers:
- 3 trailers with 272 cylinders of 90 liters each = 24,480 liters (corresponds to ~ 5,000 m³ Vn natural gas)
- 2 trailers with 256 cylinders of 89 liters each = 22,748 liters (corresponds to ~ 4,800 m³ Vn natural gas)
- Filling pressure: maximum 200 bar
- Permissible total weight without tractor unit: 32,000 kg
- Permissible total weight with towing vehicle: 40,000 kg
- Length without traction engine: ~12m
- Length with traction engine: ~16m
- Width: ~2.5m
- Height: ~3.6m
Equipment:
2 hoses per trailer with 10m each with "EO 30S AG" connection
©
